Procesador
    LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core",Pentium® Gold and Celeron® Processors
    (Go to GIGABYTE's website for the latest CPU support list.)
    L3 cache varies with CPU
    Chipset
    Intel® H610 Express Chipset
    Memoria
    Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate innon-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, datarate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
    Gráfica Integrada
    Integrated Graphics Processor-Intel® HD Graphics support:
    - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

    * Support for DisplayPort 1.2 version and HDCP 2.3.

    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.

    (Graphics specifications may vary depending on CPU support.)
    Audio
    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure

    7.1-channel audio, access the audio software for audio settings.
    LAN
    Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
    Zócalos de Expansión
    CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    Chipset:
    - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    - 1 x M.2 Socket 1 connector, for the CNVi wireless communication module (M2_WIFI)
    Interfaz de almacenamiento
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
    - 4 x SATA 6Gb/s connectors
    USB
    Chipset:
    1 x USB Type-C® port with USB 3.2 Gen 1 support, available through theinternal USB header
    - 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header)
    - 2 x USB 2.0/1.1 ports available through the internal USB header
    Chipset+1 USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports on the back panel
    Conectores Internos E/S
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x serial port header
    1 x Clear CMOS jumper

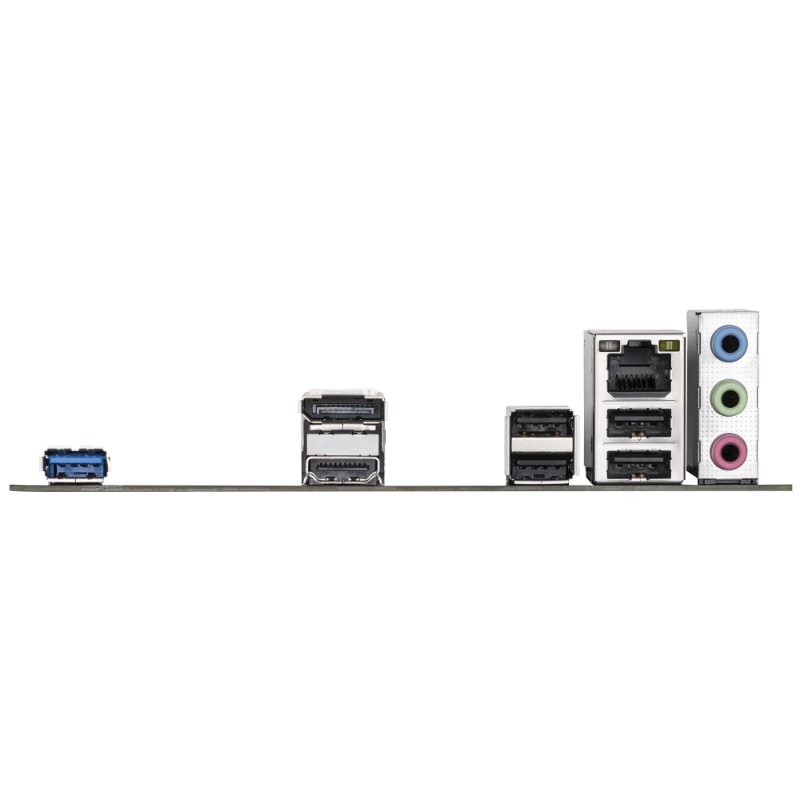

    Panel E/S Trasero
    1 x DisplayPort
    1 x HDMI port
    1 x USB 3.2 Gen 1 port
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks
    Controlador E/S
    iTE® I/O Controller Chip
    Monitorización Hardware
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan speed control function is supported will depend on the fan you install.
    BIOS
    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Otras Características
    Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    Support for Q-Flash
    Bundled Software
    Norton® Internet Security (OEM version)
    LAN bandwidth management software
    Sistema Operativo
    Support for Windows 11 64-bit
    Support for Windows 10 64-bit
    Formato
    Micro ATX Form Factor; 24.4cm x 22.0cm
