CPU
    LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
    Chipset
    Intel® Z790 Express Chipset
    Memory
    14th and 13th Generation Intel® Core™ i9/i7 Pocessors:
    - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules

    13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
    - Support for DDR5 4800/4400 MT/s memory modules

    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
    Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.

    - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

    * Support for DisplayPort 1.2 version and HDCP 2.3

    (Graphics specifications may vary depending on CPU support.)
    Audio
    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

    Support for S/PDIF Out
    LAN
    Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Expansion Slots
    CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
    - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
    Storage Interface
    CPU:
    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    - 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    USB
    Chipset:
    - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    - 2 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports, available through the internal USB headers
    Internal I/O Connectors
    1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    3 x system fan headers
    1 x system fan/water cooling pump header
    2 x addressable LED strip headers
    3 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x USB Type-C® header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    2 x Thunderbolt™ add-in card connectors
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x reset button
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper

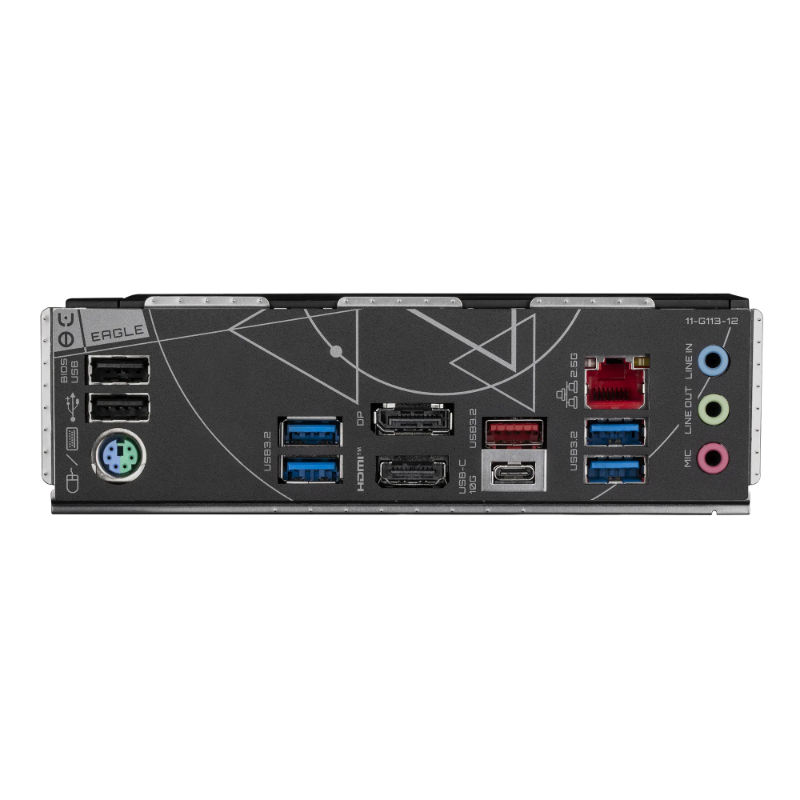

    Back Panel Connectors
    1 x PS/2 keyboard/mouse port
    1 x USB Type-C® port, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 2 Type-A port (red)
    4 x USB 3.2 Gen 1 ports
    2 x USB 2.0/1.1 ports
    1 x HDMI port
    1 x DisplayPort
    1 x RJ-45 port
    3 x audio jacks
    I/O Controller
    iTE® I/O Controller Chip
    H/W Monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
    BIOS
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features
    Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
    Bundled Software
    Norton® Internet Security (OEM version)
    LAN bandwidth management software
    Operating System
    Support for Windows 11 64-bit
    Support for Windows 10 64-bit
    Form Factor
    ATX Form Factor; 30.5cm x 24.4cm
